The Webview provides an easy method to network MedWeld 2200, 3000
Series and 4000 Series resistance welding controls. A rugged enclosure
is available in single, dual, or quad MedLAN channel configurations.
It can easily be mounted on tooling equipment to allow access
of information from welding controls to plant computers via the
plant's Ethernet network:
 |
Power ON Indicator
|
|
|
MedLAN Transmit / Receive between WebVIEW:
|
Channel 0
|
| |
|
Channel 1
|
| |
|
Channel 2
|
| |
|
Channel 3
|
|
Label clearly shows interconnection for MedLAN ports, Ethernet,
and Console Port
|
|
Key Features
|
Easy to install with plug-in connectors
|
|
|
Up to 4 optically isolated MedLAN networks (RS485)
|
|
|
Up to 30 welding controls (WCU) per channel - up to 120
WCU per WebVIEW
|
|
|
Up to 4 Data Entry Panels on each MedLAN network (up to
16 total per WebVIEW)
|
|
|
Program / View Weld Schedules, Steppers, and Setups
|
|
|
Status / View all and individual steppers with reset function
and print option
|
|
|
Information Status: Device ID of all weld controls on line
|
|
|
Archiving (Backup & Restore) all parameters to computer(s)
on network
|
|
|
Log Welding Data, Faults, Events, and Notices (300 items
per weld control)
|
|
|
View / Print / Save all log data
|
|
|
Diagnostic LEDs on front faceplate provides visual assurance
of functionality
|
|
|
Automatic interface to Bank Workstation Software
|
|

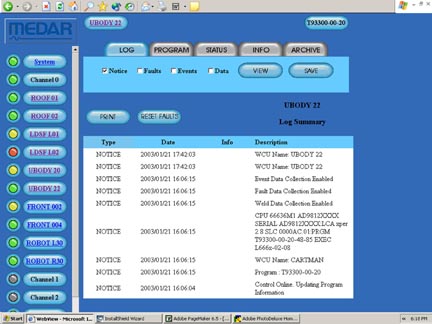

The HTML software is built-in the WebVIEW. No additional software
is needed. You simply use your computer's web browser.
|
