Medar Series 4000 Resistance Welding Controls

The MedWeld 4000 can interface with inverters, single phase AC, three phase DC and three phase frequency converter welding systems.

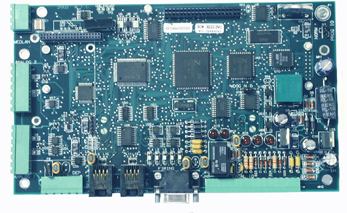

"822" Welding Processor Module

with AC/Inverter Interface, Local Safety I/O, Dual Analog Input and Output, MedLAN RS485 Network Port, Dual DIO Interfaces, MedLAN Local Port

823" Serial Interface Module"

SIO, Device Net, Profibus, Ethernet IP

The combination of the 821, 822, and 823 modules allow multiple configurations for the MedWeld 4000 control. Not shown here are the 824 module (DIO with Anti-Tie Down) and the 825 module (Ethernet IP).

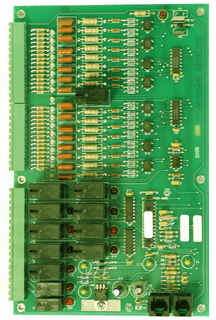

"821" Discrete I/O Modules

Provisions for 16 inputs and 10 outputs.
