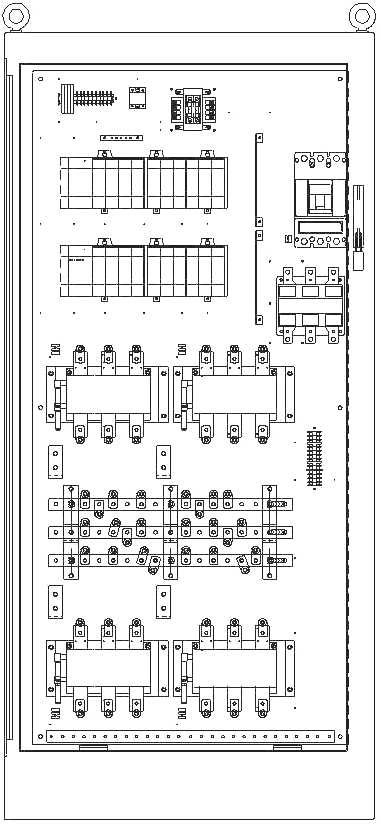

MedWeld 3095 Welding Controls

Model No. 3095-x=1200-xxxx-…. (Allen-Bradley ® SLC 500)

Base includes
Nema 12, Type 5 Enclosure
One MedWeld 3005 WCU module
One 1200 amp SCR
One Firing Card
One Current Monitoring Coil

Options:

Maximum:
12 SCRs - Cascade or Multi-timer with AB racks or
15 SCRs - Cascade without AB racks (remote enclosure)

Maximum:
Two 13-slot racks with AB modules (non-interconnected) or
Two 10-slot racks with AB modules (interconnected)

250 / 500 / 1000 VA Valve Power Supply & Fusing
Power lugs or
Circuit Breaker (250/400/600/800/1200/1600/2000 amp)

Isolation Contactor (sizes 4 or 5)
Welding Transformer Power Bus Bars
SCR options: 1200 / 1750 / 2500 / 3300 amp
Options: HHT Port Kit(s) & I/O Connectors Installed
