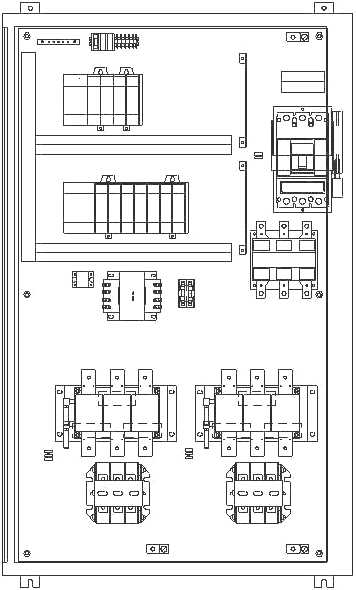

MedWeld 3065 Welding Controls

Model No. 3065-x=1200-xxxx-…. (Allen-Bradley ® SLC 500)

Base includes
Nema 12, Type 5 Enclosure
One MedWeld 3005 WCU module
One 1200 amp SCR
One Firing Card
One Current Monitoring Coil

Options:
Maximum: 6 SCRs - Cascade or Multi-timer

Maximum:
Two 13-slot racks with AB modules (non-interconnected) or
Two 10-slot racks with AB modules (interconnected)

250 / 500 / 1000 VA Valve Power Supply & Fusing
Power lugs or
Circuit Breaker (250/400/600/800/1200/1600/2000 amp) *
Isolation Contactor (sizes 4 or 5 )
SCR options: 1200 / 1750 / 2500 / 3300 amp

Options: HHT Port Kit & I/O Connectors Installed

*The maximum rack size stated assumes the assumes the use of a 400 amp Circuit Breaker
