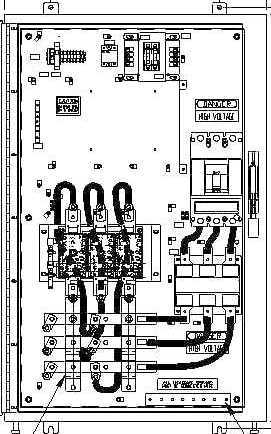

MedWeld 3045 Welding Controls

Model No. 3045-x=1200-xxxx-…. (Allen-Bradley ® SLC 500)

Base includes
Nema 12, Type 5 Enclosure
One MedWeld 3005 WCU module
One 1200 amp SCR
One Firing Card
One Current Monitoring Coil

Options:
Maximum: 3 SCRs - Cascade or Multi-timer
Maximum: One 7-slot rack with AB modules
250 / 500 / 1000 VA Valve Power Supply & Fusing
Power lugs or Circuit Breaker (250/400/600/800 amp) *
Isolation Contactor (sizes 4 or 5)
SCR options: 1200 / 1750 / 2500 / 3300 amp
Welding Transformer Power Bus Bars
Options: HHT Port Kit & I/O Connectors Installed

* The maximum rack size stated assumes the assumes the use of a 400 amp Circuit Breaker
