MedWeld 3005 Tripack Integrator's Kit

Tripack Multiphase Power Modules

Part No. 830-0168 (distributed over one phase)
Part No. 830-0168V2 (distributed over three phases)
Software T93300

The MedWeld 3005 resistance welding processor module is a welding processor that fits into the Allen-Bradley TM SLC500 rack system.

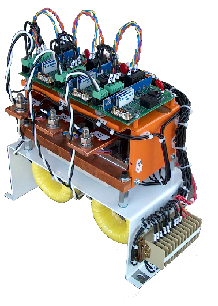

The Tripack power module is recommended for welding stations that require multiple controls in limited space. The power module has three sets of 1200 amp SCRs, firing boards and current monitoring sensors.

Three intelligent MedWeld 3005 resistance-welding processor modules are included for installation in the Allen-Bradley TM SLC 500 rack. This kit requires three interface cables (Part No. 205-1212Vx) purchased separately. The kit is completed with user manuals and drawings.

First time integrators must register the kit by purchasing the "Integrator's Documentation Kit" (Part No. 830-0152) in order to facilitate quick ladder software instructions.

The CE mark applies only to the MedWeld 3005 Resistance Welding Processor Module (917-0050)
