Base includes:
Nema 12, Type 5 Enclosure
One MedWeld 3005 WCU module
One 1200 amp SCR, Firing Card, & Current Monitoring Coil
Options:
Maximum: 6SCRs - Cascade or Multi-timer
Power lugs or Circuit Breaker (250/400 amp)
Isolation Contactor (sizes 4 or 5)
Power Bus Bars
Notes:

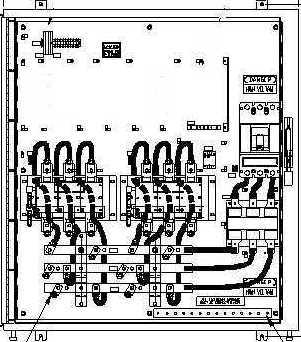

The Sixpack distribution remote enclosure measures 43.5 H x 40 W
x 16 D (1105mm x 1016 x 406). It is a NEMA 12 enclosure and is equipped
with up to six 1200 amp SCRs, six firing modules and six current
monitoring sensors.
The distribution remote enclosure provides a three-phase bus bar
for convenient weld transformer hookup. The resistance-welding processor
modules are shipped with the enclosure to be installed in the main
processor rack.
