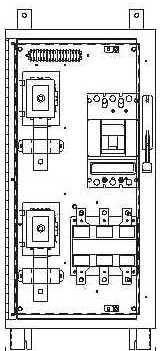

MedWeld 3000 Family Remote Enclosures

Single and Dual Remote Cabinet

Model No. 3003-x=1200-xxxx-
…. (Nachi ® Robotics)

Model No. 3004-x=1200-xxxx-
…. (Fanuc ® Robotics)

Model No. 3005-x=1200-xxxx-
…. (Allen-Bradley ® SLC 500)

Model No. 3006-x=1200-xxxx-
…. (Motoman ® Robotics)

Model No. 3007-x=1200-xxxx-
…. (Hyundai ® Heavy Industries Robotics)

Base includes:
Nema 12, Type 5 Enclosure
One MedWeld 3005 WCU module
One 1200 amp SCR, Firing Card, & Current Monitoring Coil

Options:
Maximum: 2 SCRs - Cascade or Multi-timer
Power lugs or Circuit Breaker (250/400 amp)
Isolation Contactor (sizes 4 or 5)

This package suits only as a remote enclosure system.

Robot or PLC must control internal inputs and outputs.
